Syncro’s North American racking centers supply a complete range of accessories for securing cargo inside your van


Professionals who work on the move know how important it is to ensure the safety of cargo as they drive from one job to the next. Syncro System North America supplies an extensive range of cargo retaining accessories for all possible requirements.

STEEL RAIL CARGO RETAINING SYSTEM

heavy-duty-lashing-straps-for-vanslashing-straps-and-rails-installationlashing-straps-for-vans

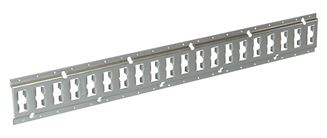

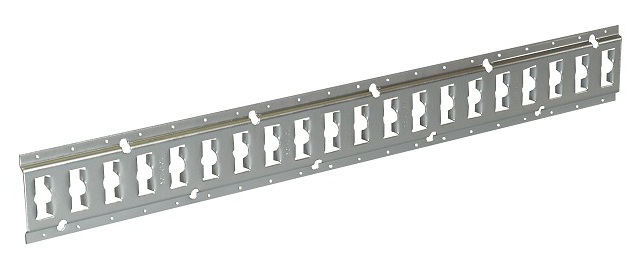

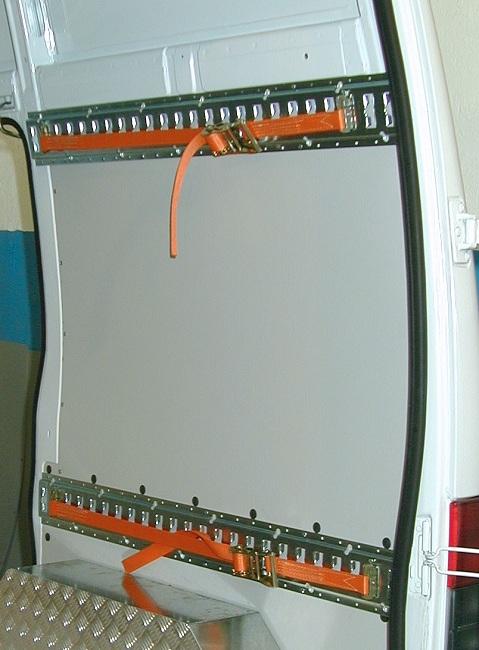

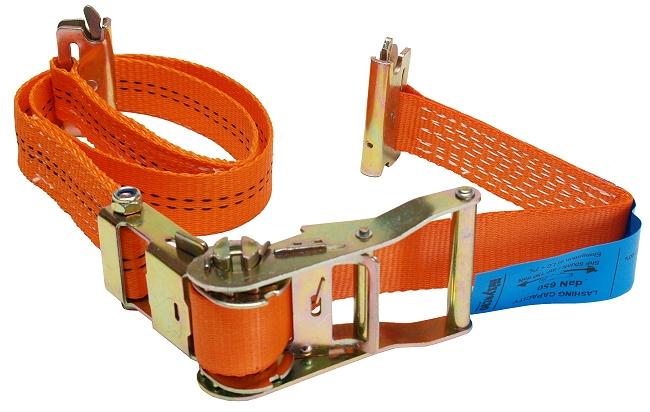

Our customers’ favorite cargo retaining system is without a doubt the ROTM rail and strap. This superb rail and strap combination boasts a load capacity of up to 4,000 kg (nearly 9,000 lb), making it the perfect choice for heavy cargo. Rails can be fitted to the sides of the van or to racking modules. Made from steel bars, Syncro rails are accurately cut to length to ensure easy installation in the load compartment and to provide rigid anchorage for cargo retaining straps. The robust and resistant straps can be attached and released quickly and easily thanks to a practical ratchet.

The system can be used with...

Movable attachments. Specially designed hooks etc., can be fitted at any position along the rail and moved around as needed.

ALUMINIUM SLIDE BAR FOR HOOKS, CLIPS AND STRAPS

Syncro’s new, double-groove aluminum slide bar is amazingly versatile and can be used with a wide range of accessories according to your needs. The bar’s front groove is designed to secure various types of accessories, including:

  • steel hooks

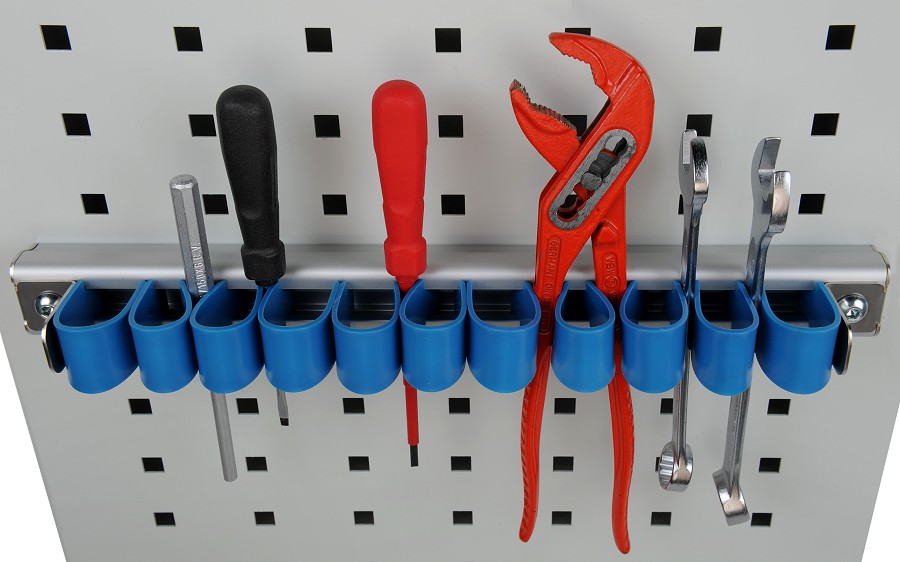

  • plastic clips

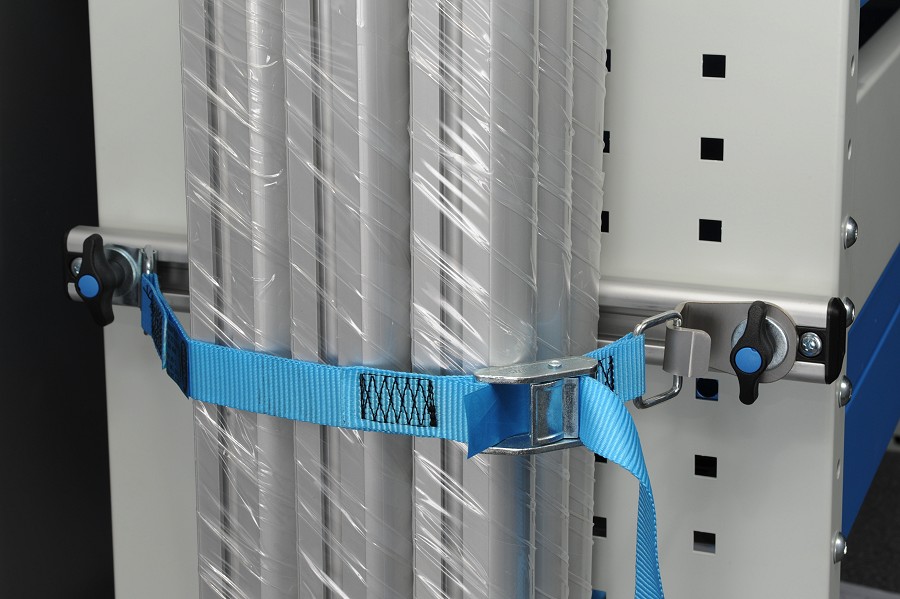

  • straps with buckle or ratchet tensioner and quick release mechanism
cable holdersmulti-purpose clampsplastic clipssteel hooksstraps with buckle or ratchet tensioner

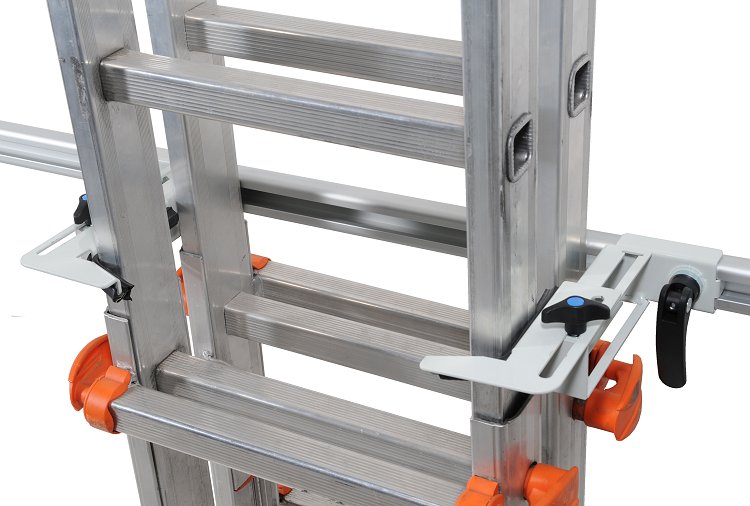

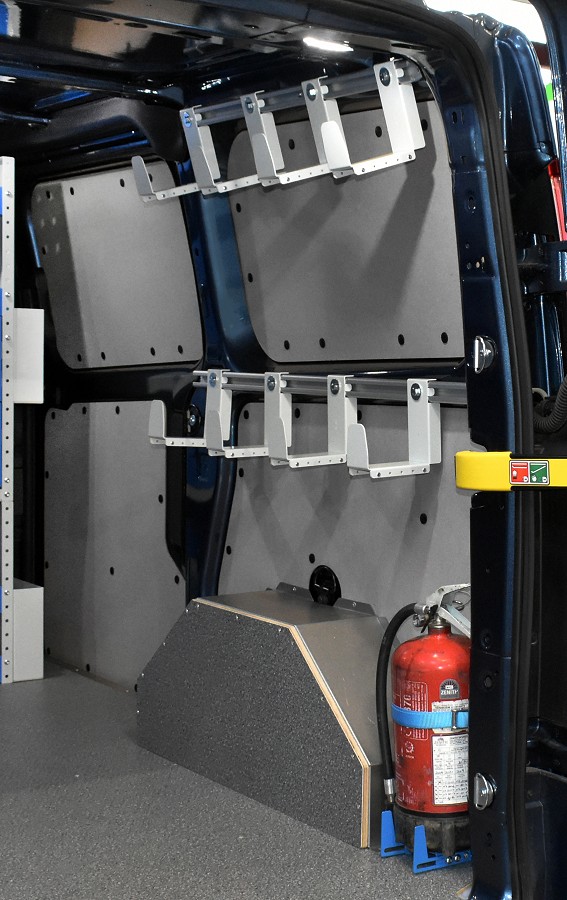

  • multi-purpose clamps with telescopic jaws and adjuster knobs that can be loosened to slide the jaws to any point along the bar. The insides of the jaws are covered in soft rubber to avoid scratching or denting the equipment transported (typically ladders, trolleys, loading ramps, pipes etc.).

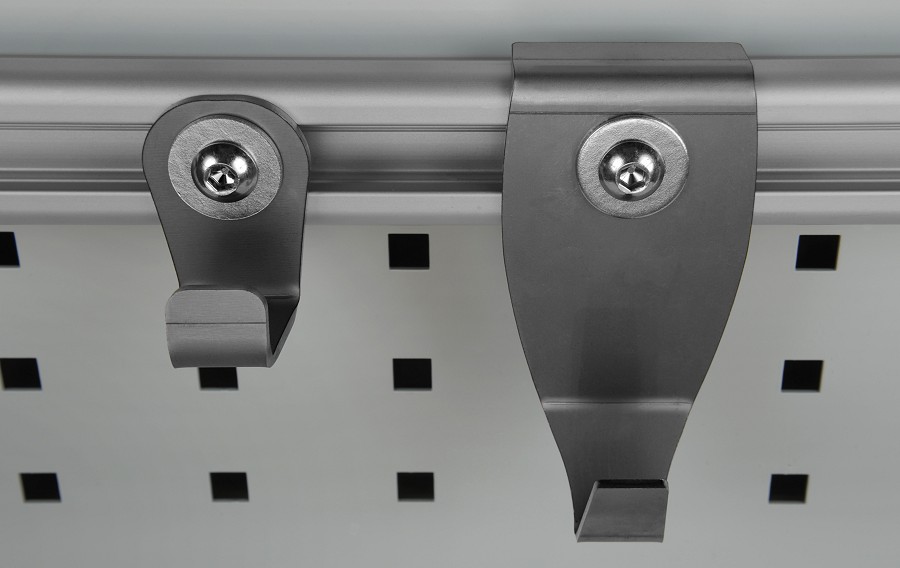

  • telescopic hooks in high-strength steel that extend to any length between 90 and 140 mm and can be fixed to any point along the bar.
bar with rubber profilesvan clamps

Accessories can be installed at any point along the bar and combined as required. The groove in the rear of the bar allows it to be installed in various ways, such as:

  1. directly to Ultra side panels using special square-head screws
  2. to Syncro Ultra racking
  3. to the van’s bodywork or interior liners

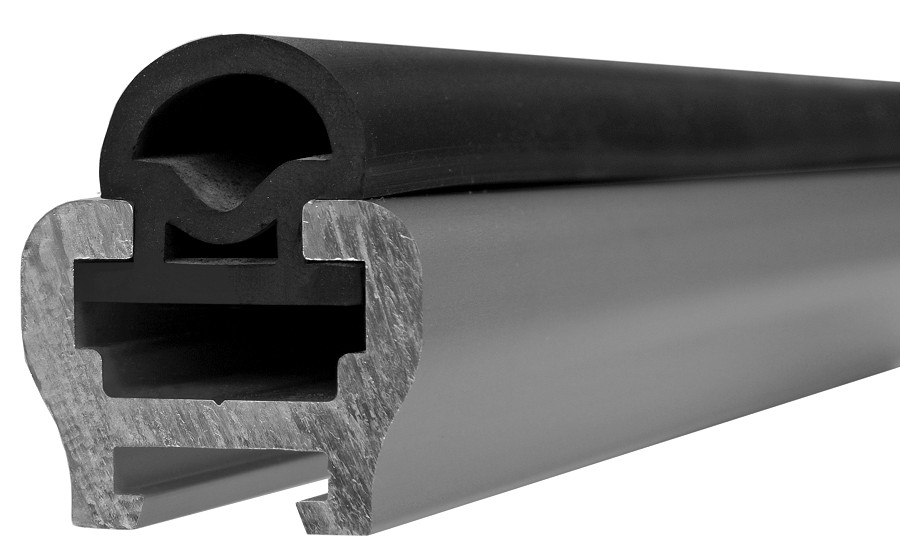

If you want to take the best possible care of the equipment you carry around with you and stop things getting scratched by the bodywork or racking, Syncro North America recommends fitting a NON-SCRATCH RUBBER PROFILE to the AAT00018 bar. This profile acts as an elongated cushion between the bar and the cargo and avoids damage from friction and impacts.

MILLED RAIL CARGO RETAINING SYSTEM

01_rotaia-fresata-con-occhiello02_cinghie-con-cricchetto-per-rotaia-fresata03_cinghie-per-furgoni-con-terminali-ad-uncino

An alternative cargo retaining system takes the form of aluminum rails, shaped by milling to hold posts, straps or hooks. Syncro System makes three different versions of these rails. Depending on your requirements, Syncro centers can fit them to the walls, floor or ceiling of your van or even to racking modules.

ANCHOR RING AND STRAP CARGO RETAINING SYSTEM

If you cannot or do not want to fit rails or bars in your van, you can still carry cargo safely and securely using Syncro System straps attached to your van’s standard anchor rings or to special Syncro anchor rings that can be fitted anywhere in the cargo space, to the floor, walls or ceiling.

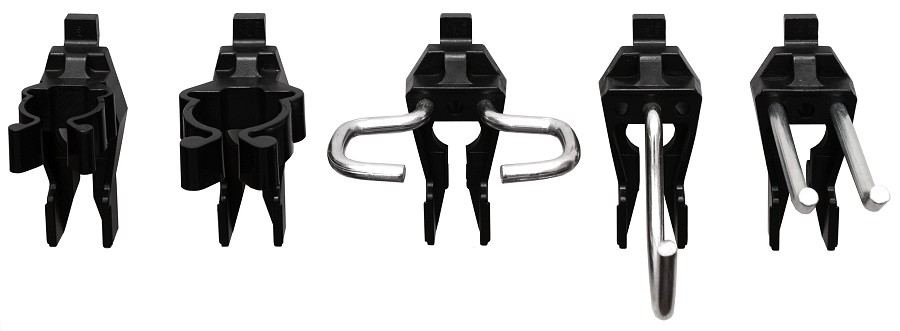

PLASTIC AND STEEL HOOKS AND CLIPS FOR SQUARE HOLES

01_Plastica and steel hooks02_Plastica and steel hooks03_Plastica and steel hooks04_Plastica and steel hooks05_Plastica and steel hooks

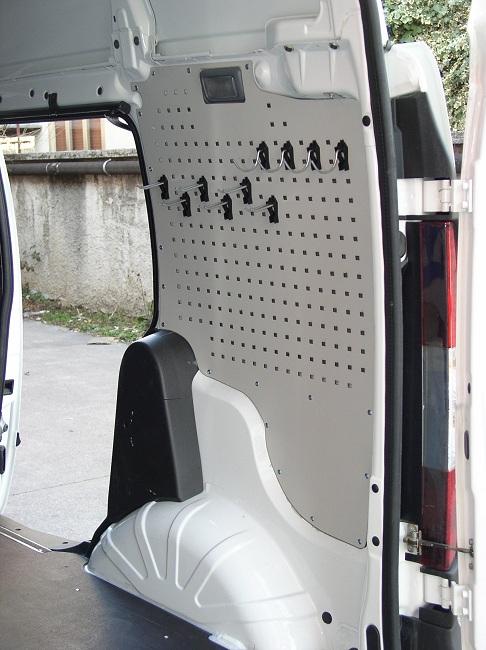

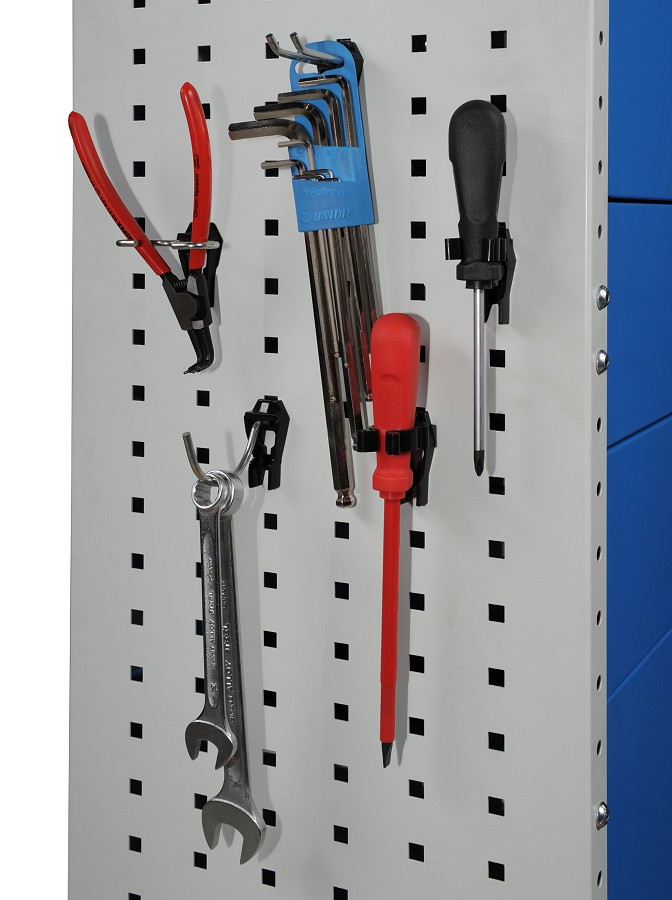

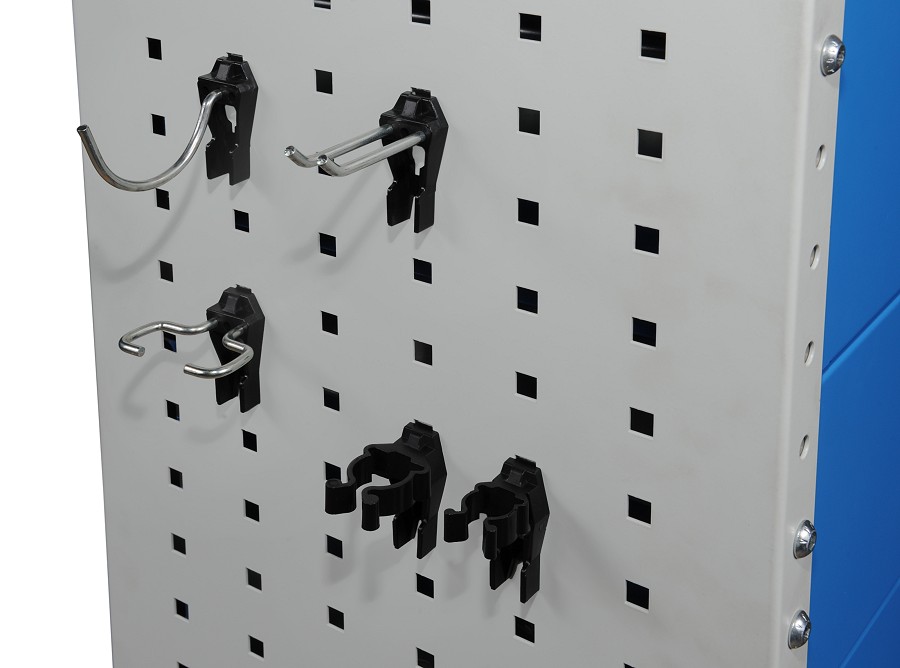

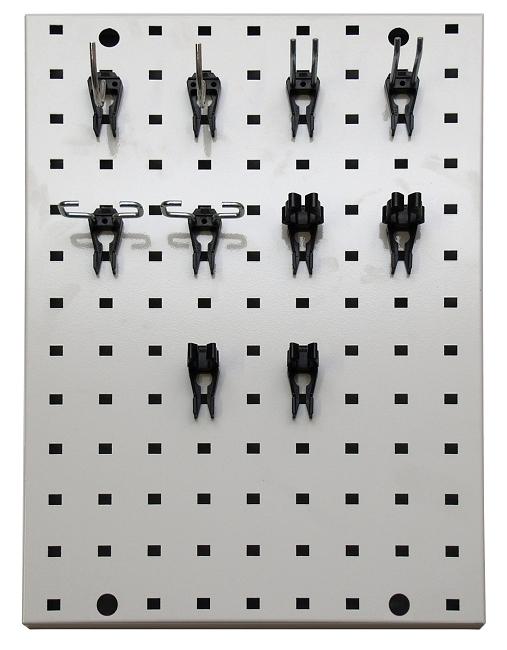

To coincide with the arrival of the Ultra system, Syncro has modified some if its most popular accessories to make them even more versatile and easy to use and to exploit the tremendous potential of the new racking. The rear of our plastic and steel hooks and clips, for example, has been modified to fit the square holes of Ultra side panels, tool rack panels and perforated interior liners.

Here’s our latest ultra-rapid cargo retaining system!

01_A strap and tensioner cargo retaining system by Syncro System 02_A strap and tensioner attached to a rail on a van’s side wall03_A load secured to a metal cargo rail by a Syncro System strap and tensioner 04_A strap and tensioner fixed to the floor 05_Using a strap and tensioner to secure cargo 06_Cargo secured to the van floor with a Syncro strap and tensioner

The Syncro strap and tensioner comes in two versions:

  • Basic. The tensioner unit is fixed to the van floor at any distance up to about 1.7 meters (5 ½’) from a floor anchor ring. The strap is extended manually over the cargo and attached to the anchor ring. The strap is then tensioned and locked with the orange lever, holding the cargo firmly in position until released. This version is extremely practical and can be used virtually anywhere in the van.
  • With adapters. The tensioner unit is fixed to a metal cargo rail by means of an adapter. A second special attachment is provided to secure the other end of the strap to another point on the same rail. The benefit of this system is its flexibility.

HOOKS AND STRAPS: SAFE, TESTED AND HOMOLOGATED

Tested hook 1Tested hook 2Tested hook 3The label on a certified strap

We may not be the only ones to claim that our hooks and straps are tough enough for the job, but:

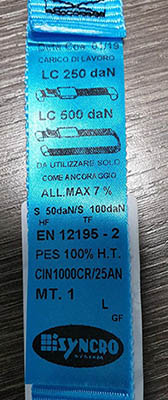

  1. Ourstraps are all certified to DIN EN 12 195-2 as demonstrated by the presence on each strap of a label listing essential information on its origin and performance, (label color depends on strap material):

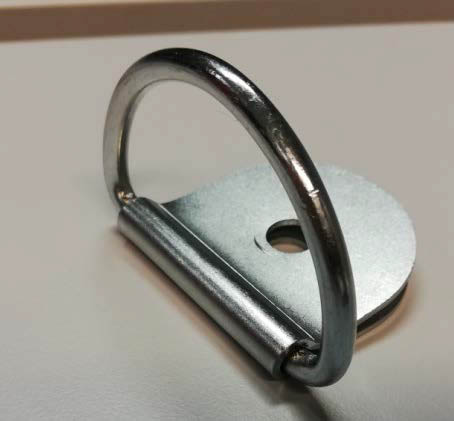

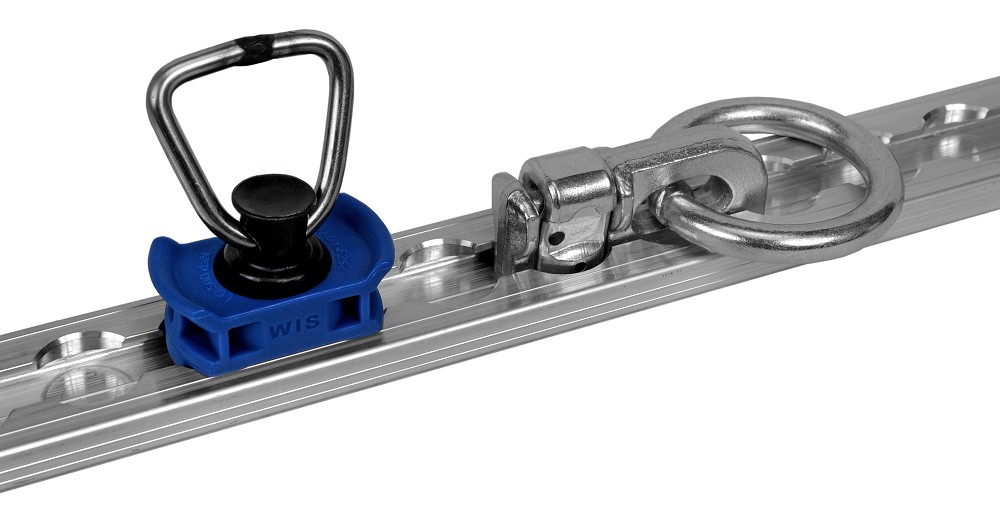

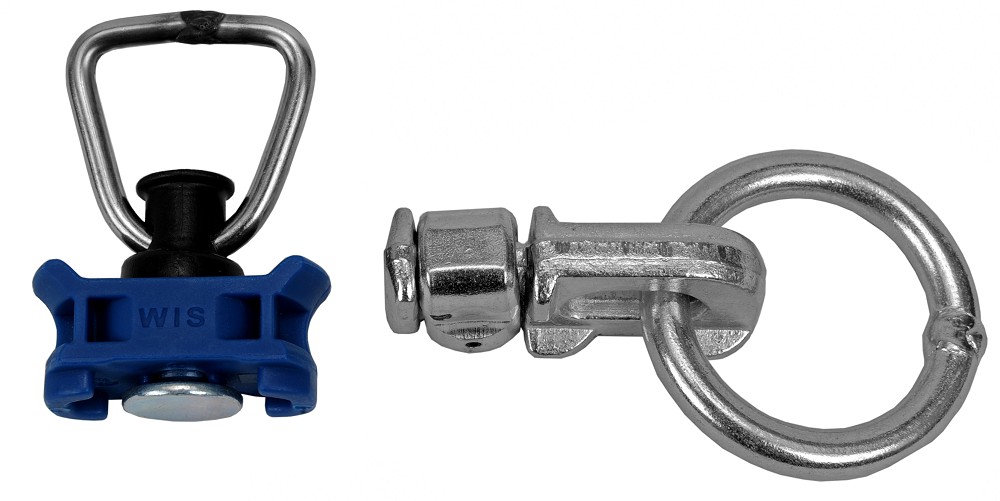

  2. Some of our hooks (ROTAL-GNC, ROTAL-GNC.AN and GNBC) have been tested according to ISO 27956 and have passed with flying colors.

MUCH MORE...

 01_Tidy net 01_A rack for 4 spray cans02_An aluminum cable holderSilicone tube holder

The Syncro catalog doesn’t stop at straps, rails and bars! Syncro centers in the USA and Canada have a vast range of products to satisfy the most diverse needs. Our range of hooks is particularly impressive. We have already mentioned Syncro’s multi-purpose hooks and straps for cargo rails. We also have pivoting and fixed hooks for use with rope and elastic ties. Our catalog also includes garment hanger clamps.

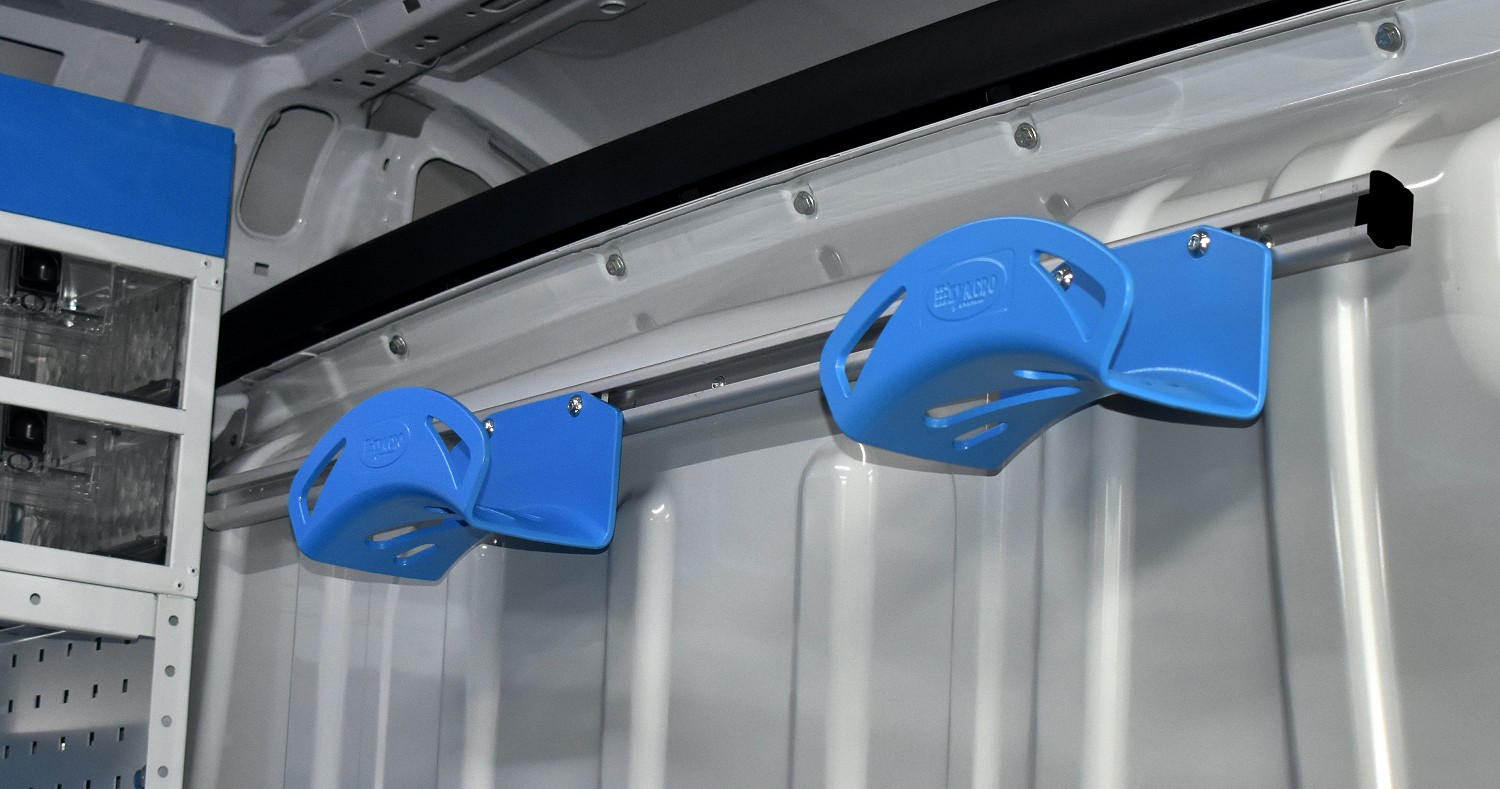

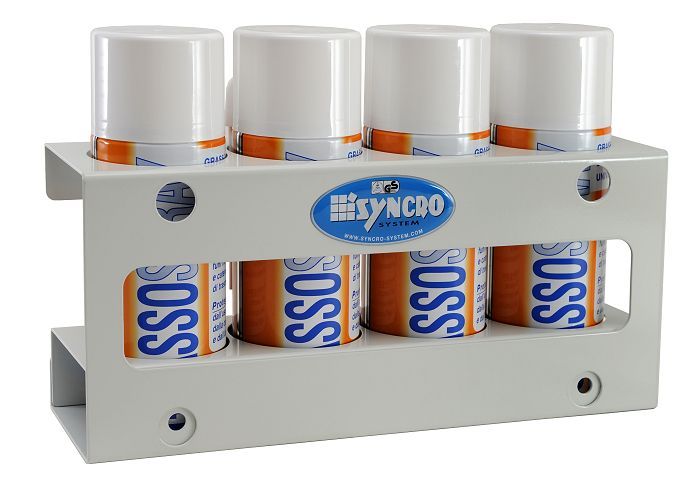

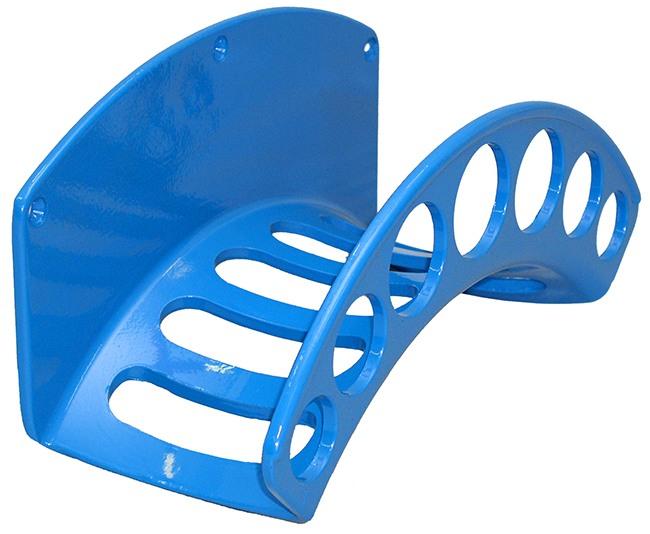

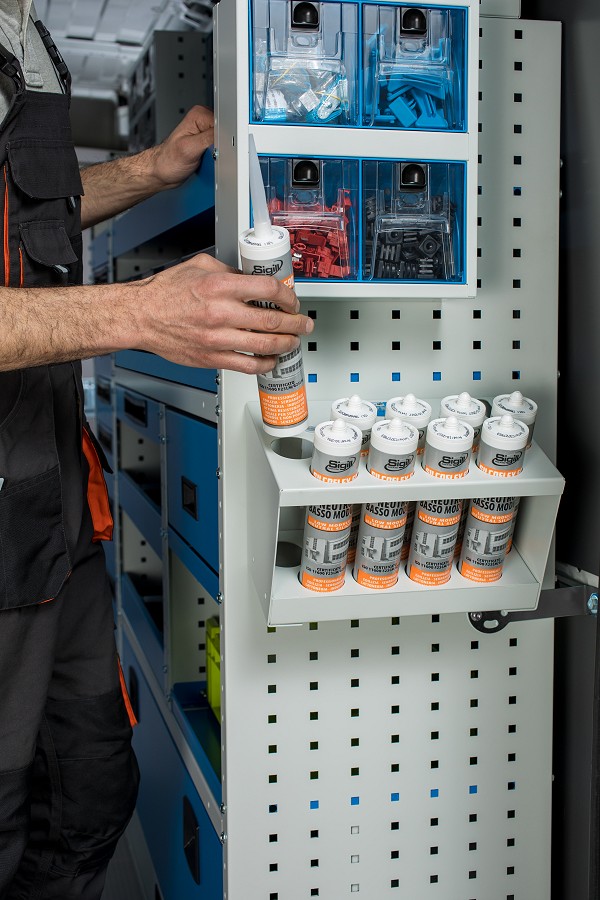

We even have special racks for tubes of silicone, complete with holes for the nozzles, and practical tidy nets for frequently used items. Syncro has dedicated products for storing your spare wheel in the back of your van, carrying fire extinguishers and cables too. Our practical cast aluminum cable holders are ideal for carrying cable in coils.

PC STAND FOR THE CAB

01_Laptop pc stand02_Laptop PC stand for the cab

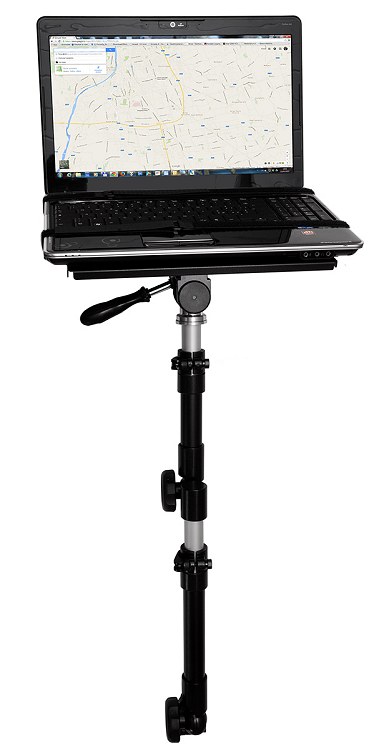

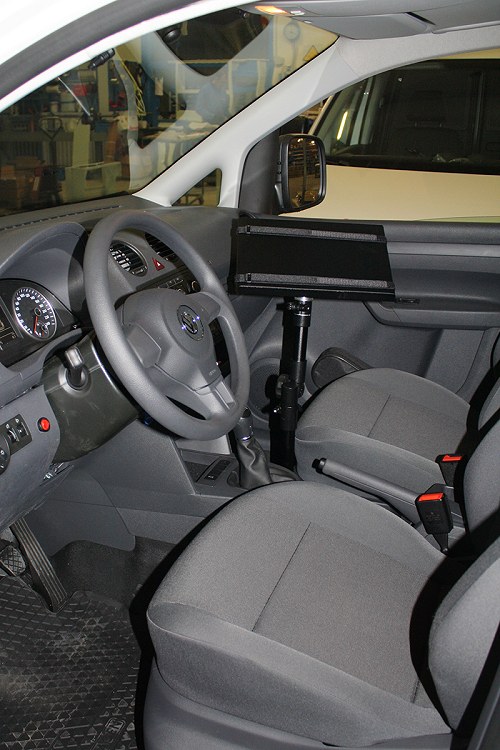

You often need a rigid surface for a PC or other item of equipment in the cab as well as in the back of your van. The Syncro laptop stand is the perfect answer to this problem. The stand incorporates a telescopic, height-adjustable aluminum post that fixes easily to the base of the passenger seat. The stand is compatible with all types of notebook and laptop PC.
